Dell

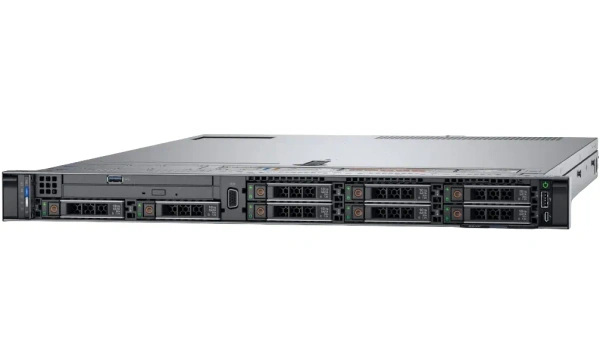

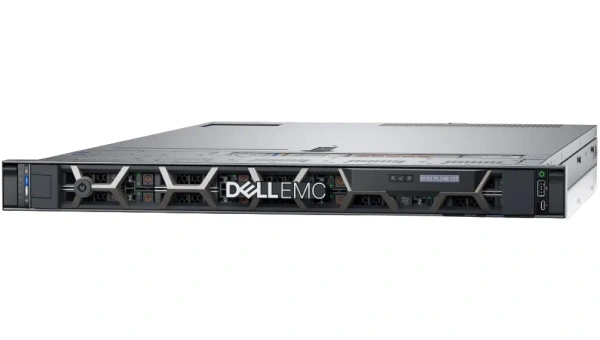

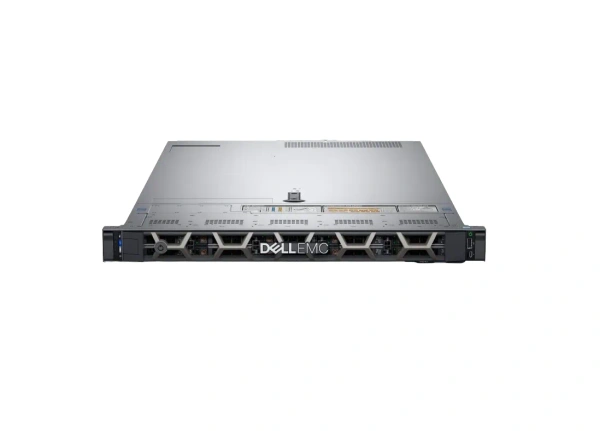

Dell PowerEdge R640 EMC (Refurbished)
₹ 135,000 / Piece
₹ 350,000
61%
Highlights
- Product: Dell PowerEdge R640
- Server Type: Rack Model
- Processor: Intel® Xeon® Gold 5115 Processor
13.75M Cache, 2.40 GHz, 10 Cores & 20 Threads - Processor Count: 2 PS
- RAM: 2 x 64GB DDR4 2400MT/s
- Hard Drive: 1.8TB SAS HDD (2 x 900GB)
- ODD: Optional
- Ports: Front IO- 1 x Dedicated iDRAC direct USB ,1 x USB 2.0
1 x USB 3.0 (optional), 1 x Video

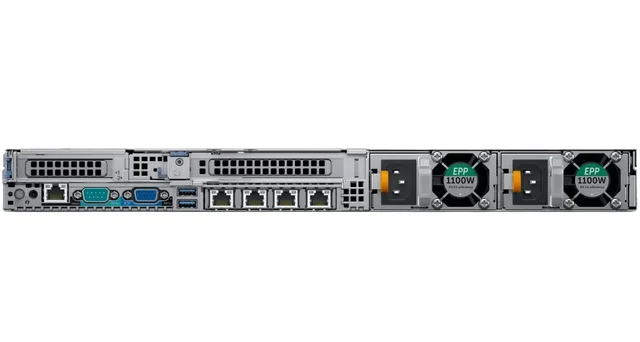

Back IO- 1 x Dedicated iDRAC network port, 1 x Serial
2 x USB 3.0, 1 x Video - Network Ports: 4 x 1GbE, 2 x 10GbE + 2 x 1GbE, 4 x 10GbE
2 x 25GbE - Internal Slots: 2 x PCIe 3.0 x16, 1 x PCIe 3.0 x8
- SMPS: Dual 750W Titanium
- Chipset: Intel® C620 Chipset
- RAID Controllers: RAID 0, RAID 1,RAID 5, RAID 10, RAID 6,
RAID 50, RAID 60, S140 - TPM: 2.0
Technical specification for the Dell PowerEdge R640 server:
1. Processor (CPU)
- Supported Processors:
- Dual Intel® Xeon® Scalable processors (Skylake or Cascade Lake architecture)
- Processor models:
- Xeon Bronze, Silver, Gold, and Platinum series (e.g., Xeon Gold 6248, Xeon Platinum 8280)
- Max CPUs: 2
- Cores per processor: Up to 28 cores per processor (depends on processor model)
- Base Frequency: Varies from 1.8 GHz to 3.8 GHz depending on the model
- Cache: From 11 MB to 38.5 MB depending on processor model
2. Memory (RAM)
- Memory Type: DDR4 (RDIMM, LRDIMM, NVDIMM)
- Memory Speed: 2933MT/s, 2666MT/s, 2400MT/s
- Capacity:
- Up to 3TB with 24 DIMM slots (12 slots per processor in dual processor configuration)
- Supports Intel Optane Persistent Memory (PMem) in certain configurations
- Memory Channels: 6 channels per processor (12 total in dual processor configuration)
- Maximum Memory Per Slot:
- 128GB LRDIMM (in 24 slots)
3. Storage
- Drive Bays:
- Up to 10 x 2.5-inch (SATA, SAS, NVMe) drives or
- Up to 4 x 3.5-inch drives (depending on configuration)
- Supported Storage Controllers:
- PERC H330, PERC H730P, PERC H840, S140 (software RAID)
- Supports RAID levels: 0, 1, 5, 10, 6, 50, 60
- Data Instant Restore (DIR) for faster data recovery
- Supported Storage Types:
- SATA, SAS, NVMe
- Hot-plug drives supported
- Max Storage Capacity: Varies by drive type and configuration, but with SSDs, can exceed several terabytes
4. Expansion Slots
- PCIe Slots:
- 2 x PCIe 3.0 x16 full-height slots (expandable with riser cards)
- 1 x PCIe 3.0 x8 half-height slot
- Supports GPUs, network cards, and storage controllers
5. Networking
- Onboard NIC: Dual-port 1GbE LAN (LAN on Motherboard, LOM)
- Optional Network Cards:
- 10GbE, 25GbE, 100GbE adapters (via PCIe expansion slots)
- Optional Broadcom, Mellanox, or Intel NICs
- Networking Features:
- Network adapter failover
- Teaming and load balancing
- RDMA (Remote Direct Memory Access) support (for specific cards)
6. Power Supply
- Power Supply Options:
- 450W, 750W, or 1100W hot-plug redundant power supplies
- 80 PLUS Platinum, Gold, or Titanium certified for energy efficiency
- Redundancy: Dual hot-swappable power supplies for high availability
- Power Management:
- Dynamic Power Capping to limit power consumption
7. Cooling
- Fans: Hot-swappable cooling fans for redundancy
- Airflow: Optimized airflow design with variable-speed fans for efficient cooling under different workloads
8. Security
- Trusted Platform Module (TPM) 2.0
- System Lockdown: Prevents unauthorized changes to the BIOS
- Secure Boot: Protects the system during boot from unauthorized software
- Chassis Intrusion Detection: Alerts if the server’s chassis is opened
- Lockable bezel for physical security
9. Form Factor
- Rackmount: 1U
- Dimensions: 17.2 inches (W) x 1.7 inches (H) x 27.5 inches (D) (437.4 mm x 43.4 mm x 698.6 mm)
- Weight: Approximately 18.5 kg (40.8 lbs) (depending on configuration)
10. Management
- Dell OpenManage: Comprehensive systems management suite
- iDRAC9 (Integrated Dell Remote Access Controller):
- Remote management, monitoring, and diagnostics
- Out-of-band management even when the server is powered off
- Lifecycle Controller: Provides system setup, configuration, and maintenance tools
11. Operating Systems and Software
- Supported Operating Systems:
- Microsoft Windows Server (various versions)
- Linux (e.g., Ubuntu, Red Hat, CentOS)
- VMware vSphere
- Hyper-V, Citrix XenServer, Red Hat Virtualization
- Hyperconverged Infrastructure Support: Supports Dell VxRail and other hyper-converged solutions
- Software-Defined Storage Support: VMware vSAN, Microsoft Storage Spaces Direct (S2D)
12. Storage and RAID Configuration
- RAID Configurations:
- RAID 0, 1, 5, 10, 6, 50, 60 (depending on the RAID controller)
- RAID Controllers:
- PERC H330, PERC H730P, PERC H840, S140 software RAID
13. Environmental Specifications
- Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Storage Temperature: -40°C to 65°C (-40°F to 149°F)
- Humidity: 8% to 80% (non-condensing)
- Altitude: Operating: Up to 3,048 meters (10,000 feet); Storage: Up to 12,192 meters (40,000 feet)
14. Certifications
- ISO 14001 (environmental management)
- ENERGY STAR (for power efficiency)
- RoHS, WEEE, CE Marking (compliance with international environmental standards)
Summary of Key Technical Features:
- Processor: Dual Intel Xeon Scalable CPUs (up to 28 cores per processor)
- Memory: Up to 3TB with 24 DIMM slots (supporting Intel Optane PMem)
- Storage: Up to 10 x 2.5-inch or 4 x 3.5-inch drives with flexible storage options (SATA, SAS, NVMe)
- Networking: Dual 1GbE LOM with optional 10GbE/25GbE network cards
- Power: Dual redundant hot-plug power supplies (450W to 1100W)
- Security: TPM 2.0, Secure Boot, system lockdown, and chassis intrusion detection
- Management: iDRAC9 for remote monitoring and management
These specifications and features make the Dell PowerEdge R640 a versatile and scalable server, ideal for virtualization, cloud computing, database management, and high-performance workloads in a data center environment.
The Dell PowerEdge R640 offers several additional features that enhance performance, flexibility, and manageability, making it a highly capable server for a wide range of enterprise applications. Here are some of the key extra features:
1. Advanced Management with iDRAC9
- Integrated Dell Remote Access Controller (iDRAC9) with Lifecycle Controller:
- Enables remote management and monitoring of the server, including hardware health status, power management, and firmware updates.
- Provides out-of-band management, even when the system is powered off (for hardware monitoring and troubleshooting).
- Supports virtual media for operating system installation and remote troubleshooting.
2. Scalable Storage Options
- Flexible Storage Configuration:
- The PowerEdge R640 supports a mix of SATA, SAS, and NVMe drives, allowing for a highly scalable storage setup tailored to your specific needs.
- Supports Data Instant Restore (DIR) for quick data recovery in case of system failures.
3. Vast Memory Scalability
- With up to 3TB of memory and 24 DIMM slots, the R640 supports high-performance workloads, including virtualization and memory-intensive applications.
- Supports Intel Optane Persistent Memory (PMem) in configurations with Intel Xeon Scalable processors, providing high throughput and low latency for memory-demanding applications.
4. GPU Support
- The PowerEdge R640 can accommodate dual GPUs (either full-height or half-height depending on the model), making it ideal for workloads that require high-performance computing (HPC), machine learning, or artificial intelligence (AI) processing.
- Supported GPUs include models like the NVIDIA Tesla T4 or AMD Radeon series, providing acceleration for data analytics, video rendering, and AI/ML workloads.
5. Enhanced Security Features
- TPM 2.0 for hardware-based security, which is especially important for encrypted data and secure boot processes.
- System Lockdown feature that prevents unauthorized changes to the BIOS settings.
- Secure Boot to protect the system from malware or unauthorized software during the boot process.
- Chassis Intrusion Detection: Alerts administrators if the server's chassis has been opened.
6. Redundant Power and Cooling
- Dual, Hot-Swappable Power Supplies: With options for 450W, 750W, or 1100W power supplies, the server ensures redundancy and optimal uptime.
- Hot-swappable cooling fans for fault tolerance and to ensure that the system operates under optimal thermal conditions.
- Dynamic Power Capping: Allows administrators to set power consumption limits, which can be useful for reducing energy usage in large-scale environments.
7. Networking Flexibility
- Dual-Port 1GbE LAN with optional 10GbE, 25GbE, or even 100GbE network adapters for high-throughput applications, ensuring that the server can handle demanding network workloads such as virtualization, cloud computing, or high-performance computing.
- Network Adapter Failover and Teaming for redundancy and load balancing.
8. Energy Efficiency
- The Dell PowerEdge R640 is designed with energy efficiency in mind, featuring 80 PLUS Platinum/Gold/Titanium power supplies that ensure minimal energy waste.
- Energy Smart technologies and system optimization features that help reduce power consumption and lower operating costs.
9. Flexible and Advanced RAID Options
- Dell's PERC (PowerEdge RAID Controller) series offers advanced RAID management and configurations.
- Options for RAID levels: 0, 1, 5, 10, 6, 50, and 60.
- Advanced data protection features like Data Instant Restore (DIR) for fast recovery after a disk failure.
10. Virtualization and Hyperconvergence Support
- The PowerEdge R640 is optimized for running VMware vSphere, Microsoft Hyper-V, and other hyperconverged infrastructure solutions.
- Supports vSAN Ready Nodes for software-defined storage environments, enabling flexible and scalable storage options.
- With powerful processors and memory options, it can support large virtualized environments with multiple VMs (virtual machines).
11. Dell OpenManage Systems Management
- OpenManage Essentials: A software tool that simplifies server management by offering an intuitive interface for deployment, monitoring, and maintenance.
- OpenManage Enterprise: A scalable solution for managing large fleets of servers with centralized control for updates, alerts, and diagnostics.
12. Hot-Swappable Components
- Supports hot-swappable hard drives, power supplies, fans, and memory, allowing for maintenance or upgrades without downtime.
13. Compliance and Certifications
- The Dell PowerEdge R640 is designed to meet various industry standards and certifications, such as:
- ISO 14001 (environmental management)
- RoHS (Restriction of Hazardous Substances)
- ENERGY STAR certification for energy efficiency
14. Support for Industry-Specific Workloads
- Whether you are running databases, virtualization, big data, AI/ML applications, or cloud infrastructures, the PowerEdge R640 can handle demanding workloads with ease, offering optimized performance for various industry use cases.
These extra features, when combined with the powerful hardware and scalability options, make the Dell PowerEdge R640 an ideal choice for businesses that require a high-performance, flexible, and secure rack server solution.
